    BRICTEC Fuel Thermal Equipment Switchable Heavy Oil Burner For Kiln Temperature Control

    Ask Lasest Price
    Brand Name : BRICTEC
    Payment Terms : L/C, T/T
    Delivery Time : 60 days
    Model Number : ASNG/2
    • Product Details
    • Company Profile

    BRICTEC Fuel Thermal Equipment Switchable Heavy Oil Burner For Kiln Temperature Control

    BRICTEC Thermal Equipment Fuel Switchable Heavy Oil Burner for Kiln Temperature Control

    Product Description

    ASNG/2 burner is flexible to accommodate fuel type of both oil and gas (natural gas or LPG). It is equipped with two interfaces to support different fuel supplies with no need to change burners.Thus, fuel switching becomes very easy in this process. The burner is composed of two 1000L transfer tanks and heavy oil burning system and adopts electronic proportional valve, which can realize precise control, and make kiln reach preset temperate and keep constant. The heavy oil circulation pump is of Siemens brand, and the temperature controller is of OMRON brand.

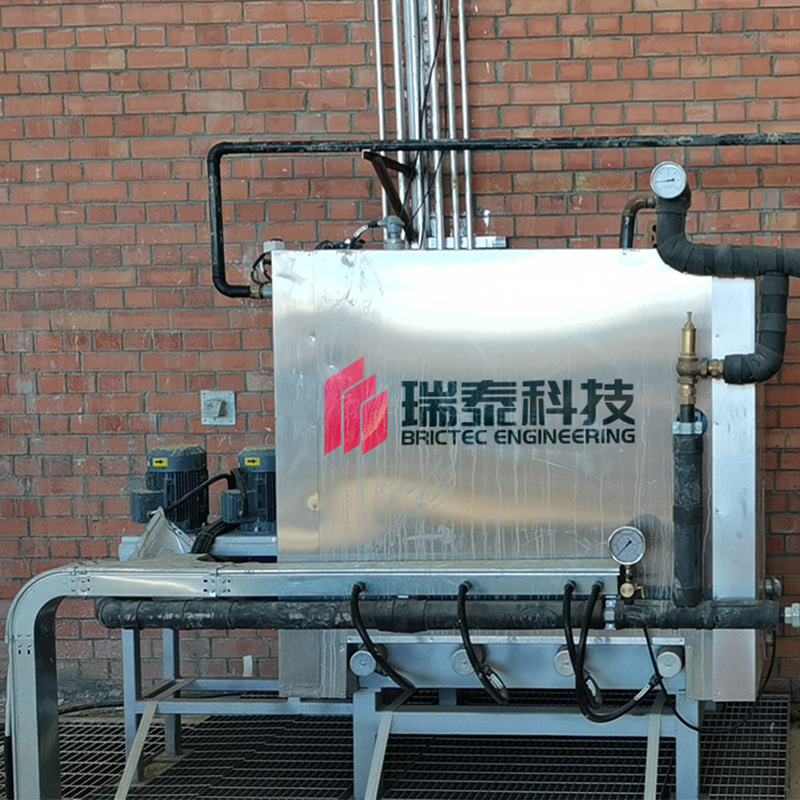

    In the process of the burning system installation service, We will provide a service tank for daily use and position it next to the kiln.The function of this daily service tank is to accept the fuel coming from the main storage tank, heat it up and deliver it to the circulating pump while allowing excess fuel to flow back into the Daily service tank, maintaining continuous fuel flow and avoiding fuel flow not moving due to low temperature. All the daily service tanks are equipped with heating components, safety floaters and other accessories to ensure safety and high efficiency.

    Techinical Parameters

    ASNG/2OilGas
    Pipe fuel pressure/0.2÷2bar
    Fuel typeAll types including HFO, LFO, crude oil, and biofuelsAll types including natural gas,butane and propane
    Working methodStepless speed change through frequency converterON-OFF
    Each burning point power40-70Kw40-70Kw
    Heater power1200W/
    Installation methodOn the Kiln roofOn the Kiln roof

    Daily oil service tank technical data
    Capacity1000L
    Heating Power15000W
    Safety FloaterMinimum level control(Submerged type)
